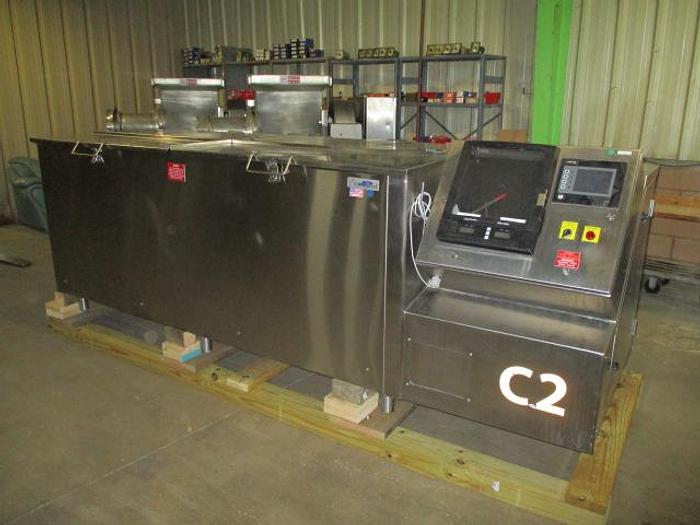

Cleveland Range/JC Pardo Cook/Chill Tank with Baskets; Md#CT-2000

Cleveland Range/JC Pardo Cook/Chill Tank with Baskets; Md#CT-2000

Location:Lake City, PA

orCall 814.774.0888

Description

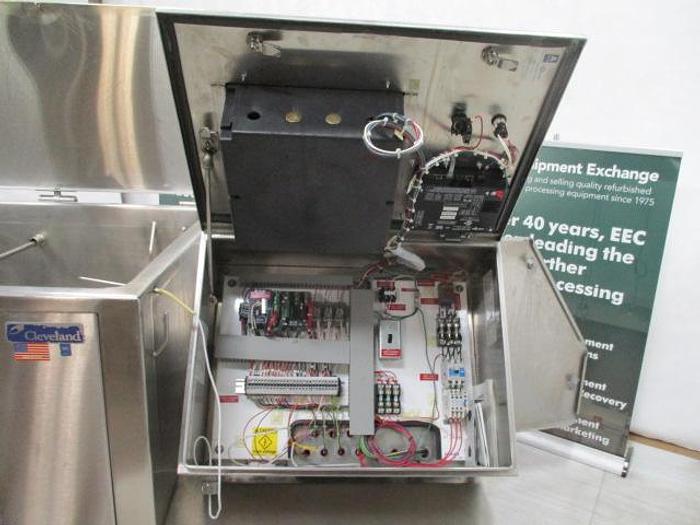

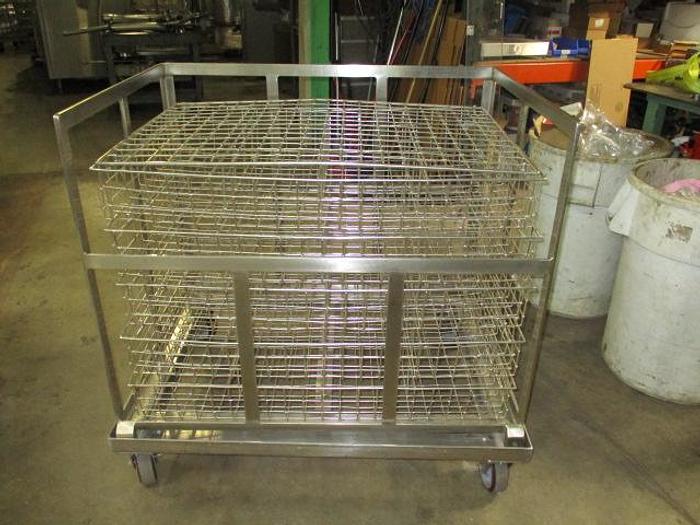

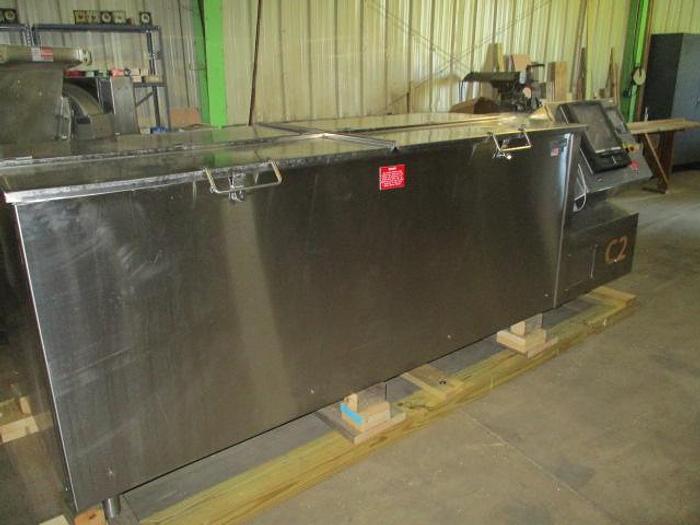

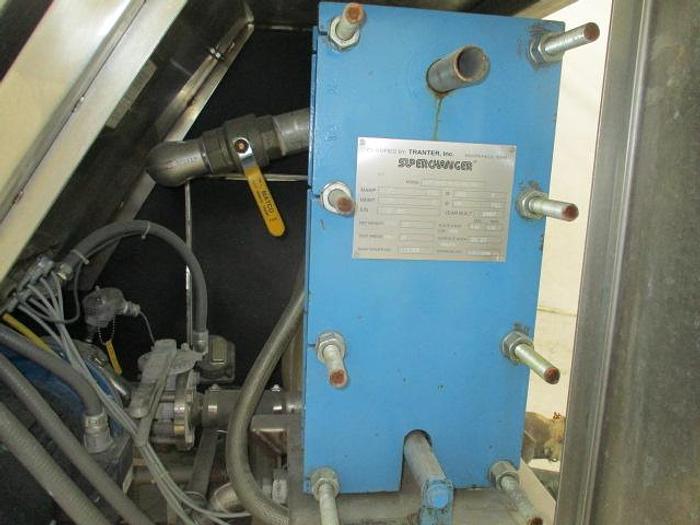

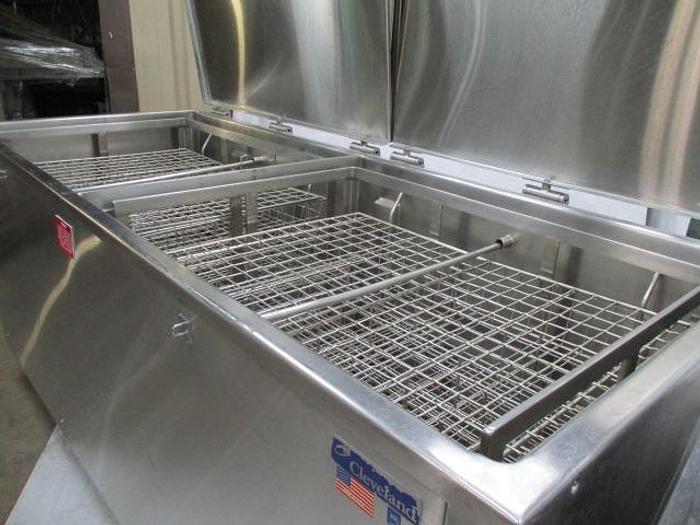

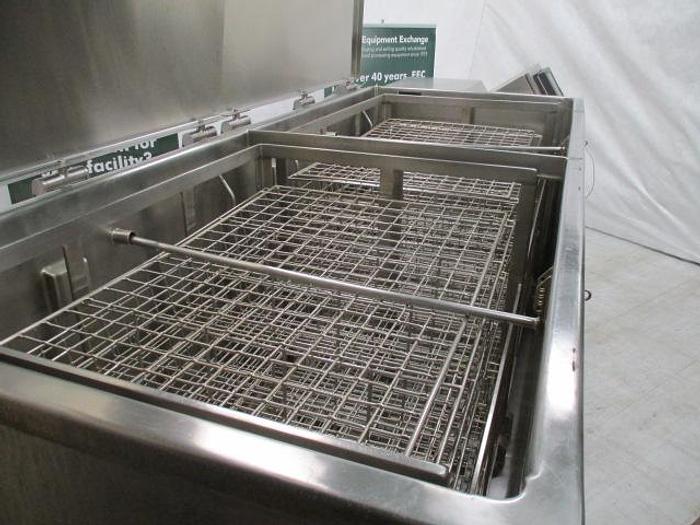

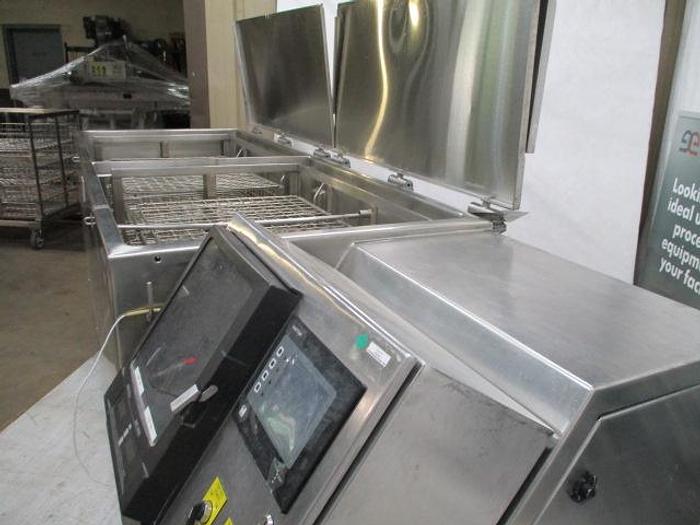

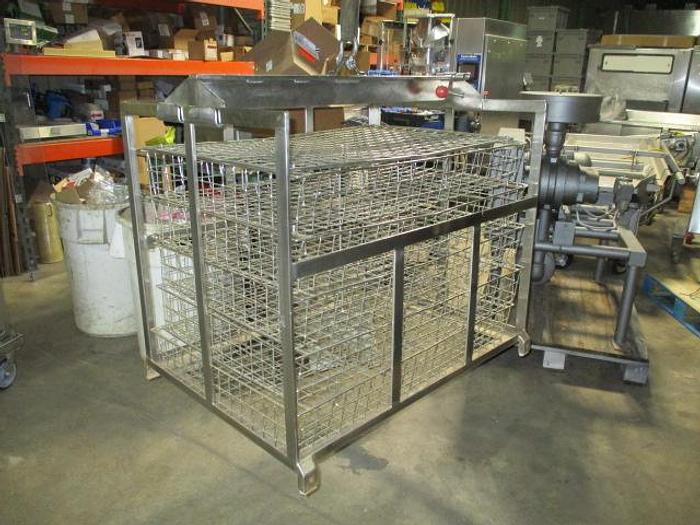

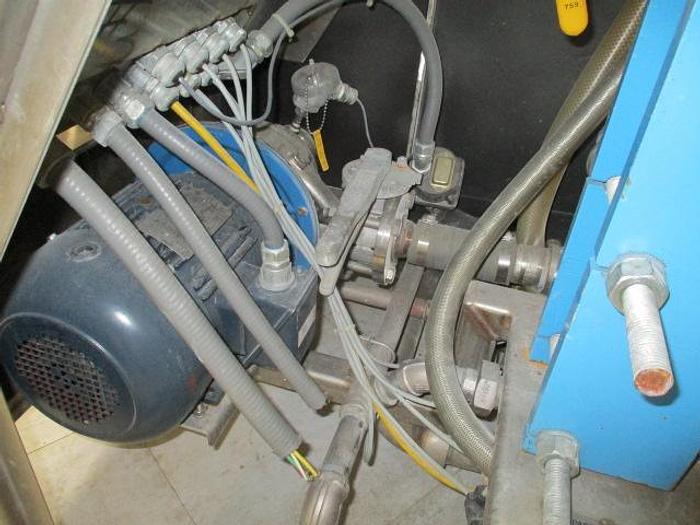

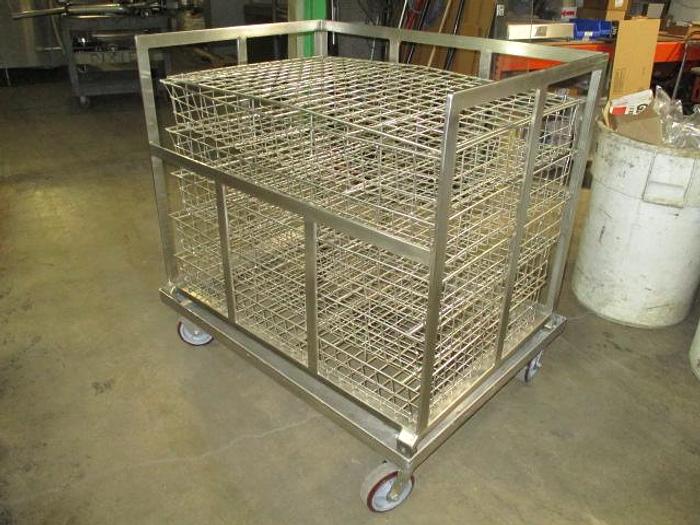

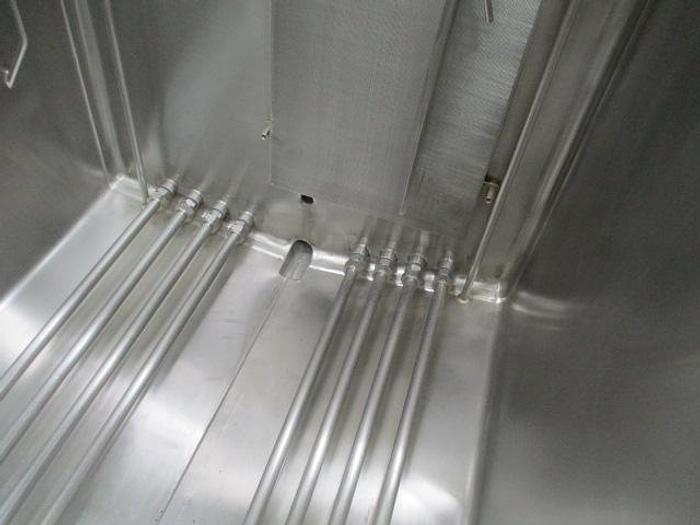

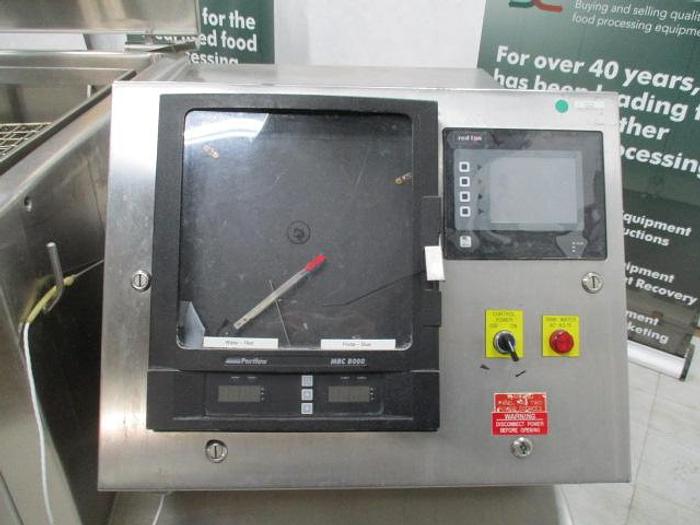

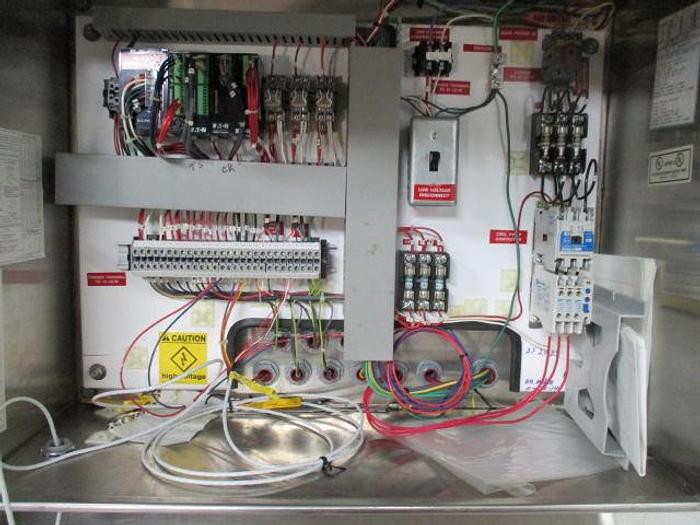

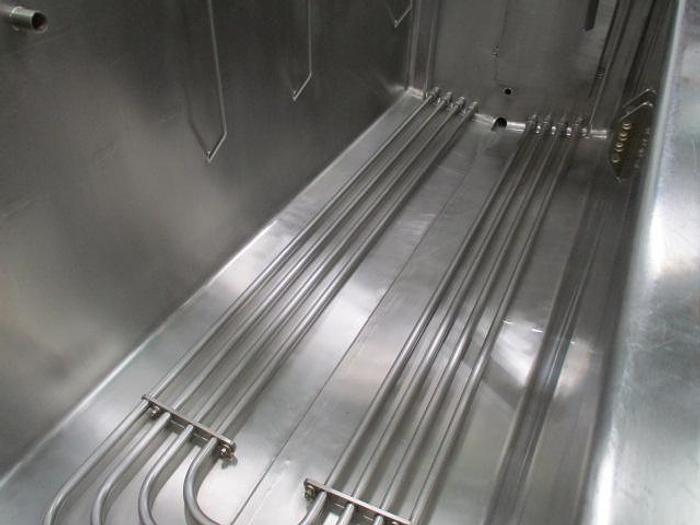

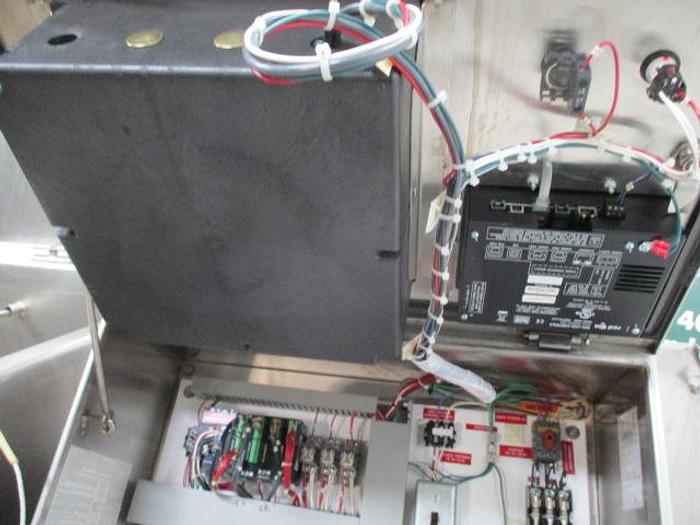

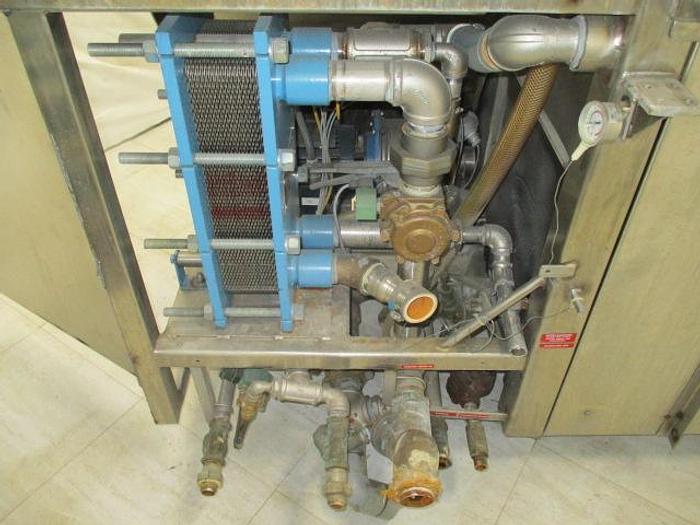

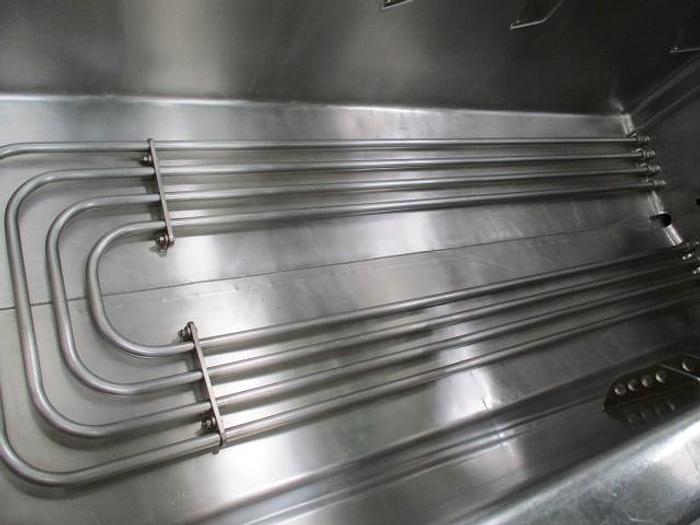

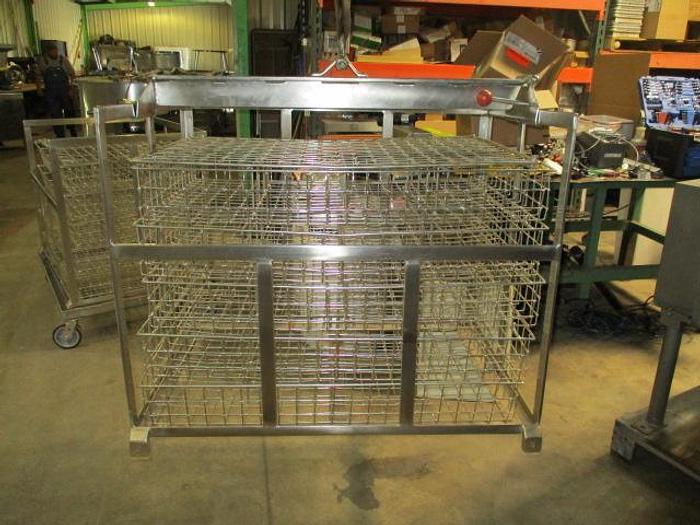

Cleveland Range/JC Pardo model CT-2000 cook/chill tank rated at 2000 Lbs has fully insulated outer stainless steel jacket, propeller agitator, cooking heat exchanger and steam heater built into tank with overflow protection, programmable time/temperature chart recorder, timer, and meat probe for automatic cooking and cooling. The tank also features 2 separate covers with hasp for padlock. All plumbing and electrical components are enclosed in stainless steel console. In addition the tank has thaw timer, 2-pen chart recorder for permanent record of water and product time/temperature. The tank comes with four baskets. Red Lion PLC programmable control

Utility

Connections:

Chilled water in at max 20 psi; 2" NPT, 140 GPM; Chilled Water Return: 2"

NPT; Potable Cold Water: 1" NPT, 30 GPM; Potable Hot Water; 1" NPT,

20 GPM; Steam @ 100 PSI Max; 1" NPT, 320lbs/h; Condensate Return;

3/4"; Blow Down Elbow; 2-1/2"; Overflow Drain; 2" NPT; Drain;

2" NPT

Electrical:

208V, 3PH. Each tank has four (2) additional basket sets. FOB Lake City, PA.


Specifications

ManufacturerCleveland/JC Pardo
ModelCT-2000
Year2007
ConditionUsed
Serial Number8486-1
Stock Number20226
