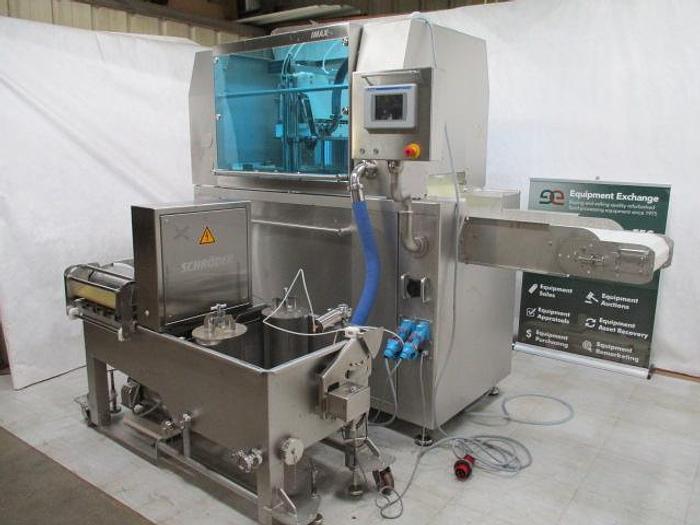

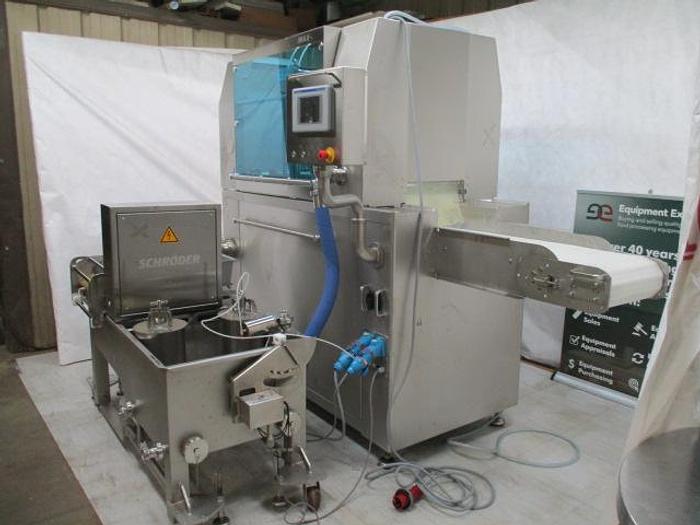

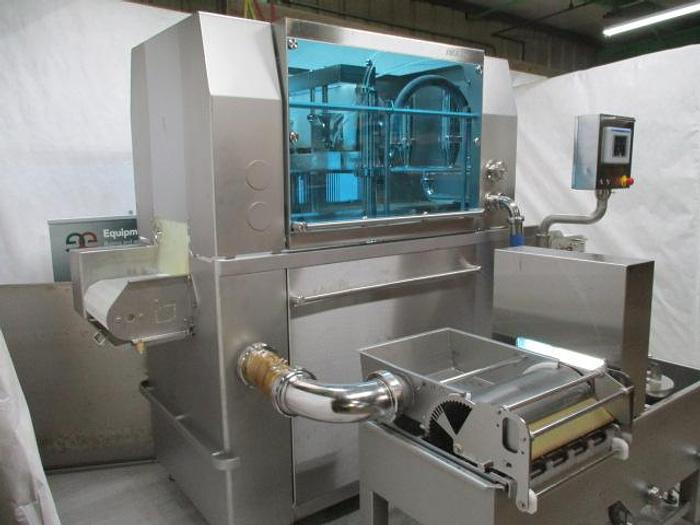

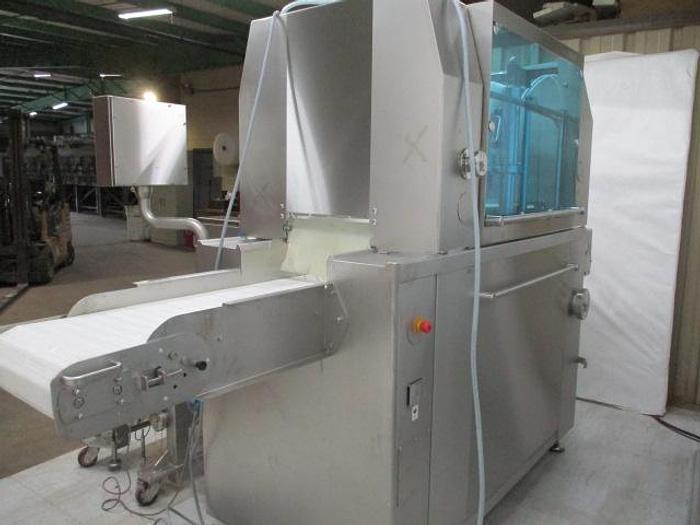

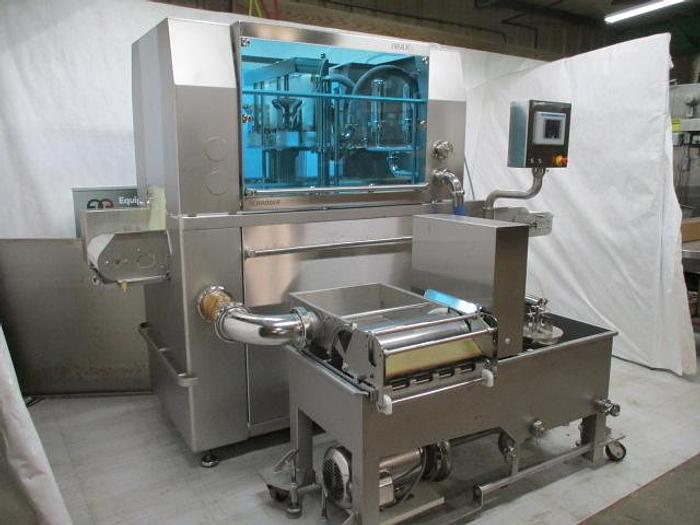

Schroder Belt Injector w/Filtration System; Md#IMAX430

Schroder Belt Injector w/Filtration System; Md#IMAX430

Lake City, PA

orCall 814.774.0888

Description

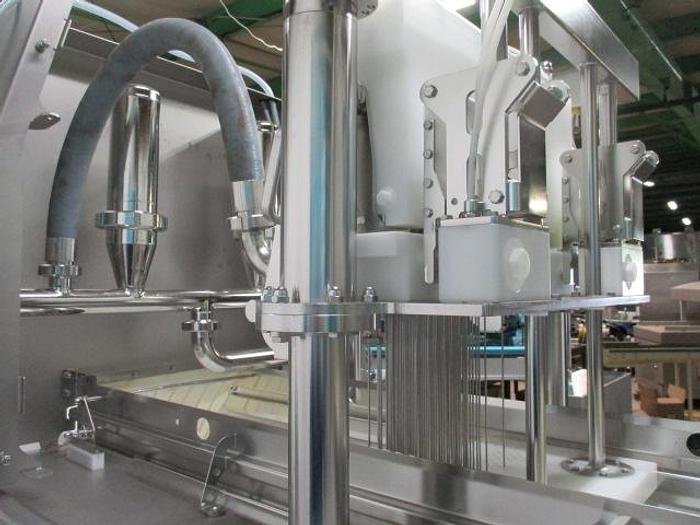

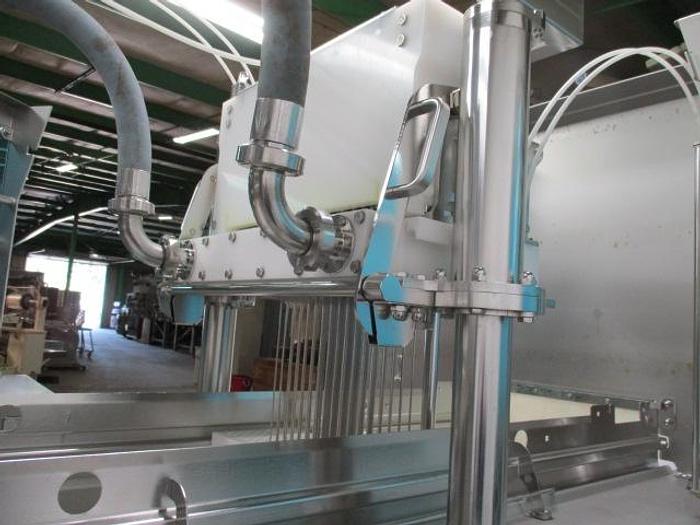

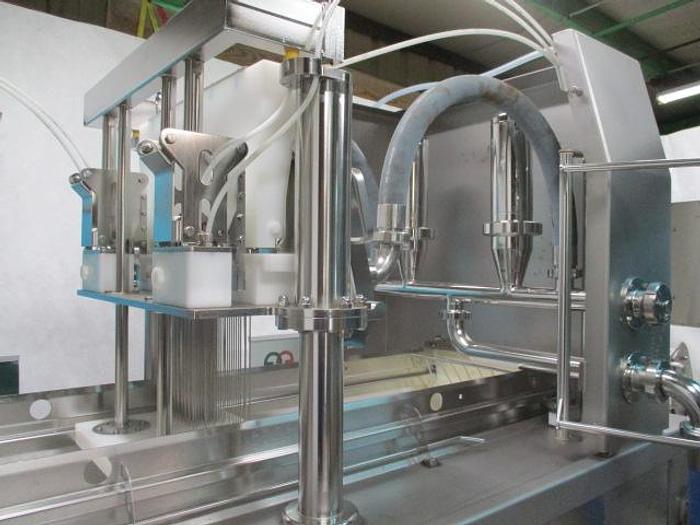

The classic field of application of IMAX belt injectors are small-sized products or in industries in which the entire product transport often takes place using belts. Thus, these injectors are typically found in the fish and poultry industry. The high needle density (up to 900 needles) and low injection

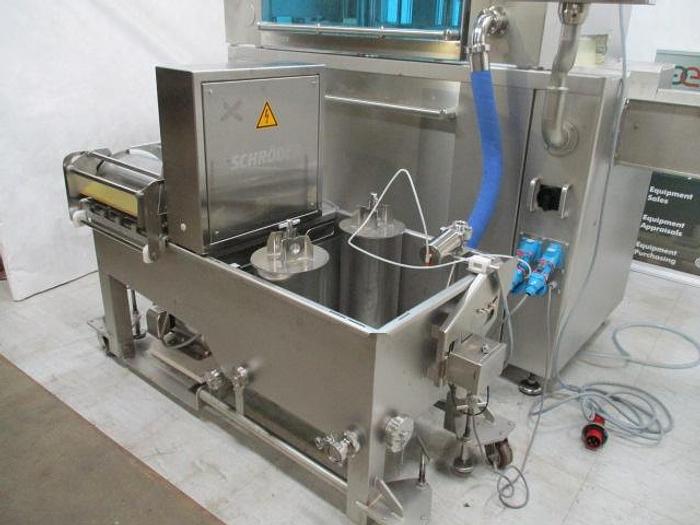

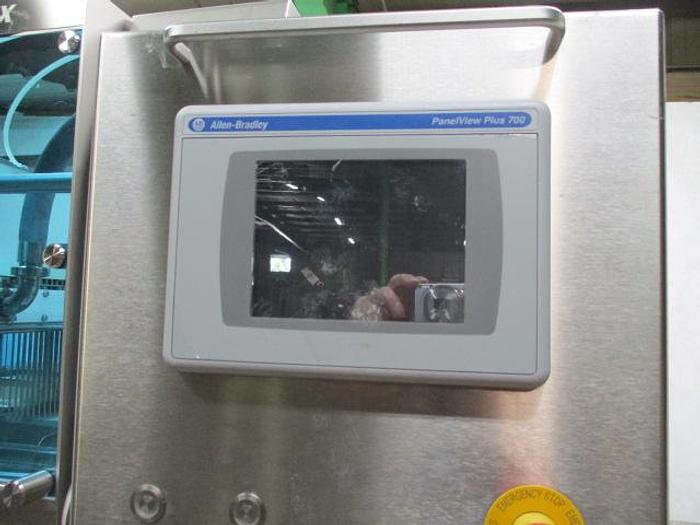

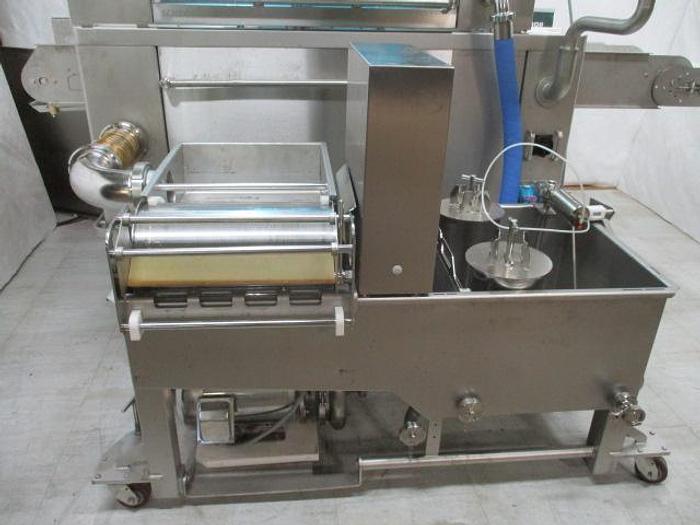

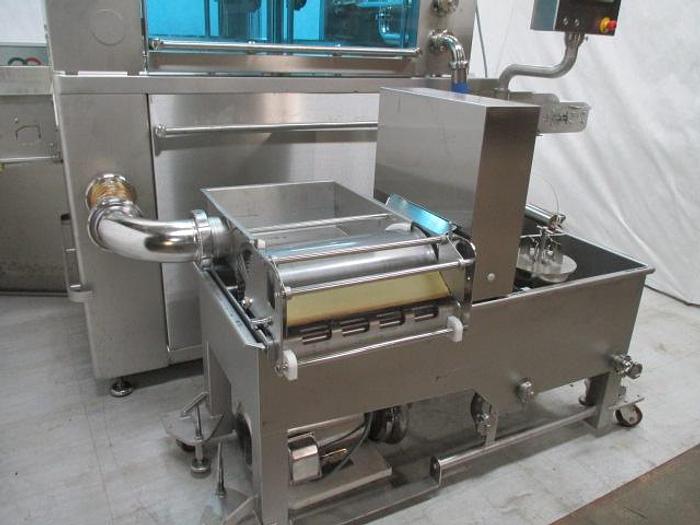

pressure of the IMAX belt injectors ensure gentle and uniform injection of sensitive fish and poultry products. The large number of needles also makes it possible to adjust the product feed, in addition to 50 mm and 100 mm, up to 200 mm. This ensures a high level of output even for very small and light products. The IMAX belt injector has 430 mm pan width. It is PLC TOUCH PANEL CONTROL, size 10.4” – user-friendly operation,ergonomic layout. It includes self-cleaning rotary filter with brine basin FT200 and powerful rotary pump with tool-free quick-release coupling for cleaning position.

MAX. INJECTION AREA PER HOUR 227 m²

CYCLES PER MINUTE: 15

ADVANCE: 50 mm

PRESSURE RANGE: 0.5 – 4.5 bar

COMPRESSED AIR: min. 6 bar

The injector was built in 2018 and is 440V, 3 phase. FOB Lake City, PA.

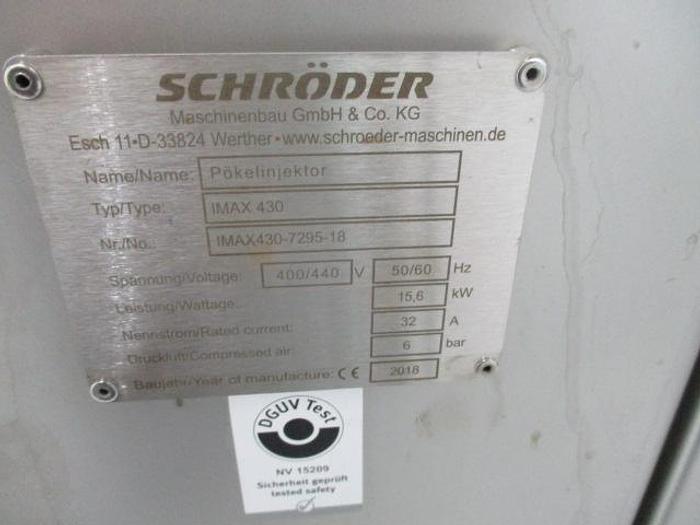

Specifications

ManufacturerSchroder
ModelIMAX430
Year2018
ConditionUsed
Serial NumberIMAX430-7295-18
Stock Number20261
