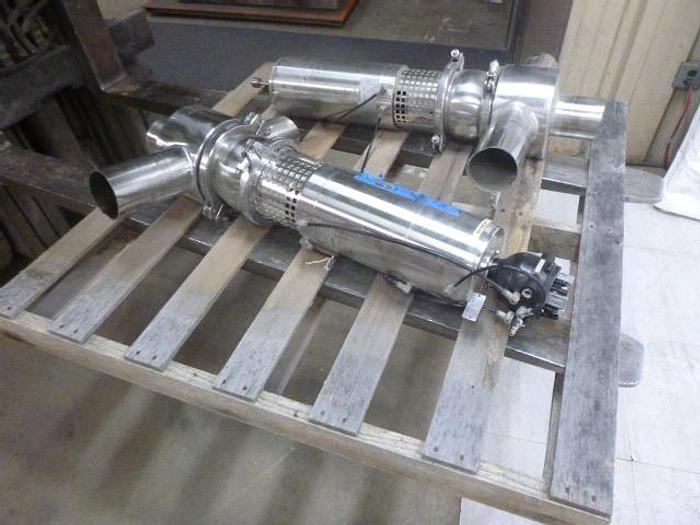

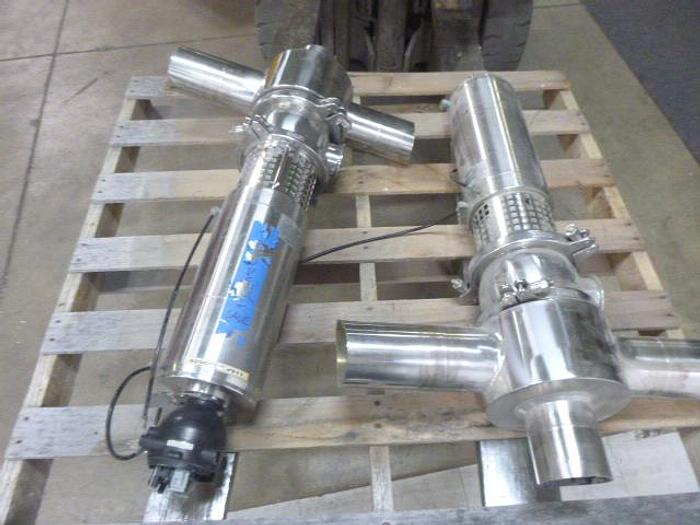

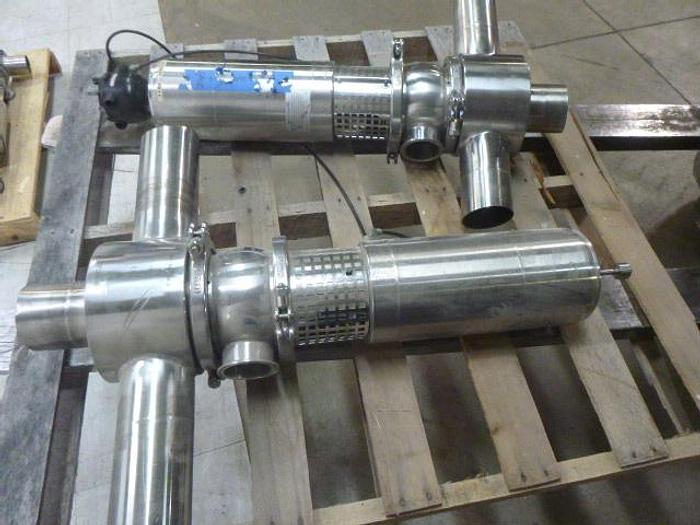

Pentair Double Seat Valves; Model: DSV Complete; 4", 3 way valves

Pentair Double Seat Valves; Model: DSV Complete; 4", 3 way valves

Location:Lake City, PA

orCall 814.774.0888

Description

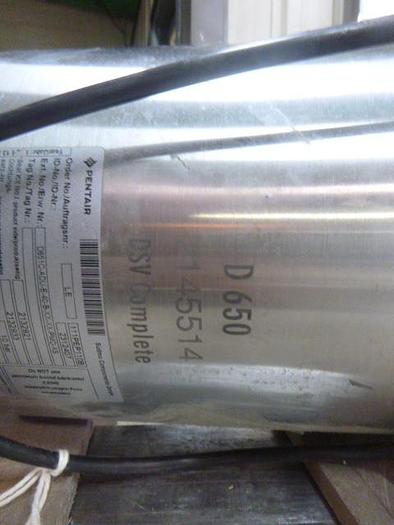

Pentair double seat DSV complete valves with 4", 3-way valve. It's model D650/2132683. It features reliable separation of two media (e.g. product and cleaning liquid). The two sealing elements work separately to avoid pressure build-up and leak detection can be checked visually. All surfaces in contact with product can be cleaned.

FUNCTION:

• The function of the double-seat valve is shown in the below tank farm application example. • Simultaneous, programmed filling, emptying and cleaning of four production lines without risk of mixing. Reliable separation of upper and lower valve housing allows one or more lines or tanks to be cleaned during production

INNOVATIVE SEALING CONCEPT:

In seat area: Step seat with conical seal O-ring • Radial seat with RSC seal (Radial Seal Complete)

In shaft area: Sealing by form-fit profile seal

HIGH OPERATING PRESSURES:

• Open, close and seal up to 10 bar*

High pressure pulse resistance

There are five units available. Price quoted is per valve.

Specifications

ManufacturerPentair
ModelDSV Complete
ConditionUsed
Stock Number20430
