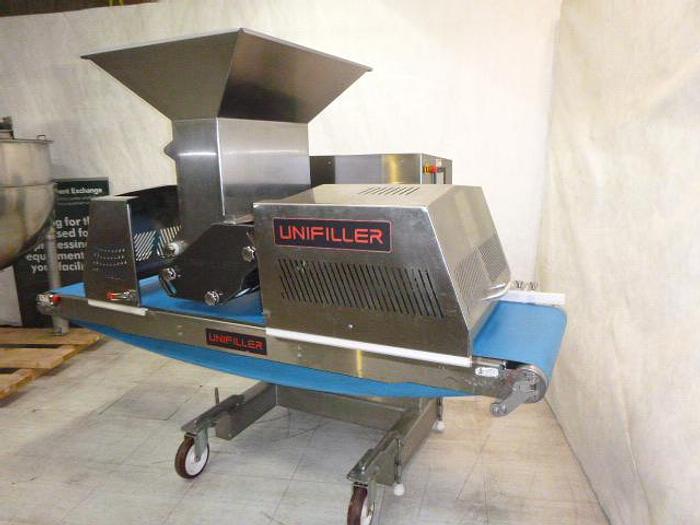

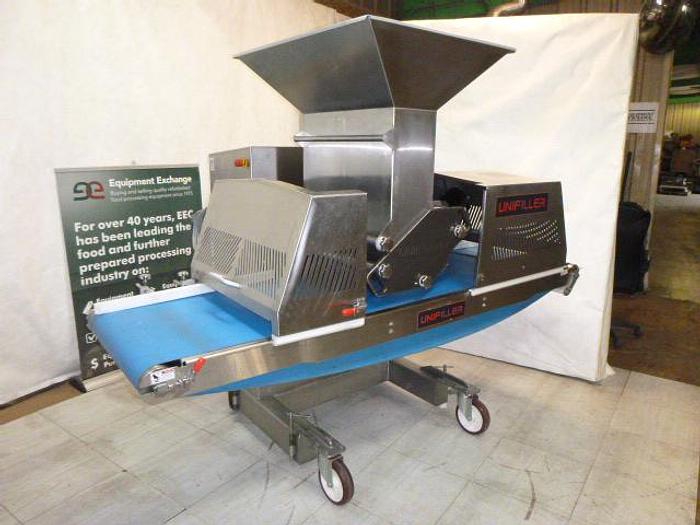

Unifiller Servo-Driven Multi-Station Depositor

Sold

Unifiller Servo-Driven Multi-Station Depositor

Location:Lake City, PA

Description

The Unifiller Multi-Station is a high-speed compact solution for precise multi-piston depositing of soft or stiff batters, chunky fillings, egg custards, liquid products and more, using servo-driven technology.

Machine Features and Benefits:

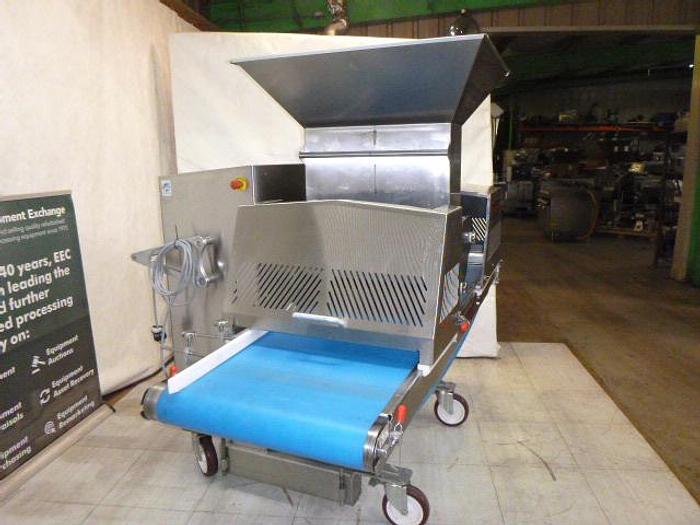

  • Built in conveyor, 25" wide by 8' long
  • Programmable touchscreen display with recipes
  • Accurate individual portion control through each nozzle
  • Gentle on delicate products with chunks or inclusions
  • Spread and fill stiff, heavy products
  • Built in pan sensor and PLC controls

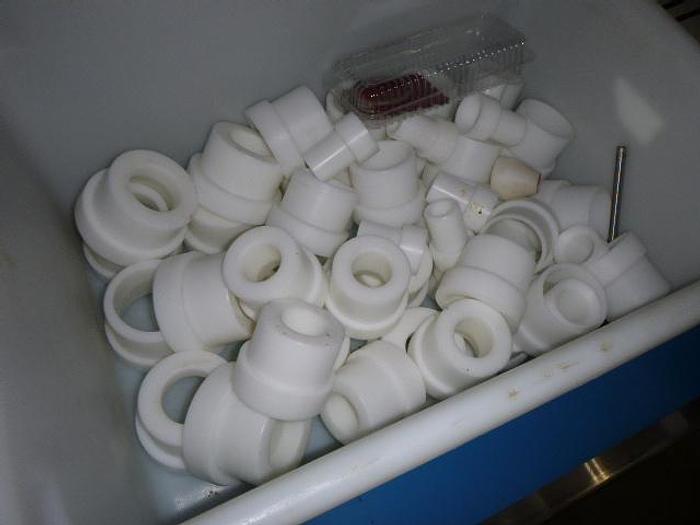

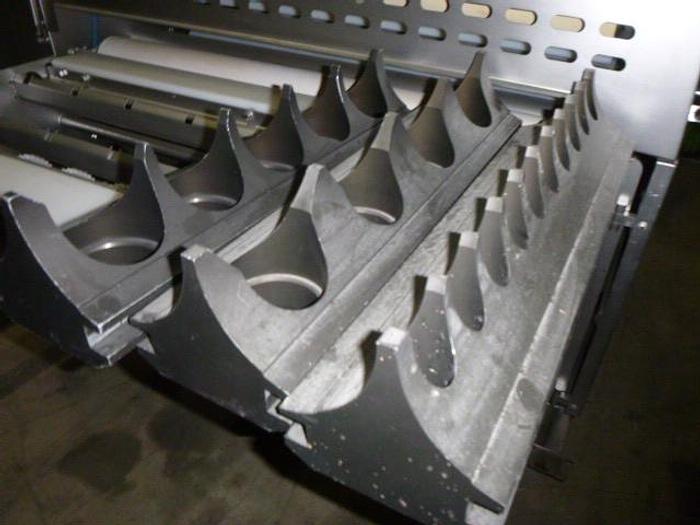

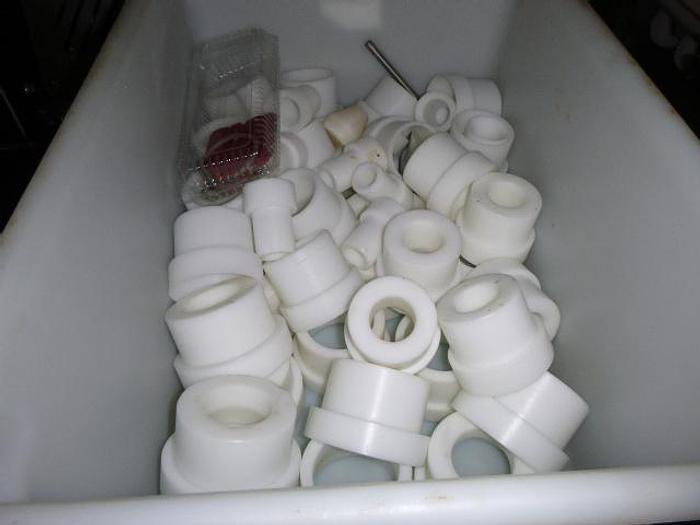

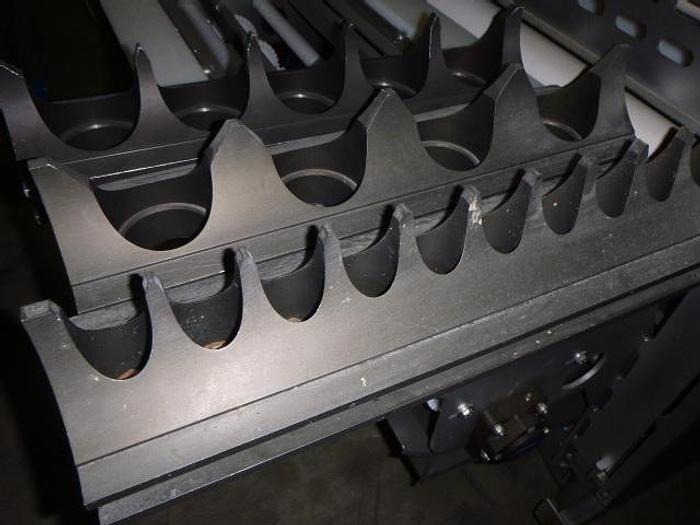

  • 6 across nozzles and 3 product cylinders, currently set with six 2" round. Three additional die sets; 1.5", 2-1/4", and 2.5" rounds.
  • Also available are: One 10 die set at 1" round, one 5 die set with three inserts at 1" and 2" round, and 1-5/8" x 1-7/8" rectangular
  • 11 US gal (42 litres) hopper & integrated lift motion conveyor
  • Versatile: spread, inject, layer, deposit, mid-fill or decorate

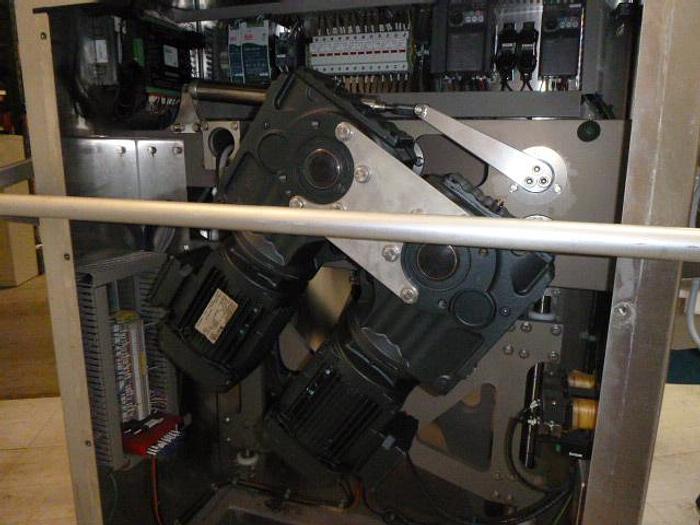

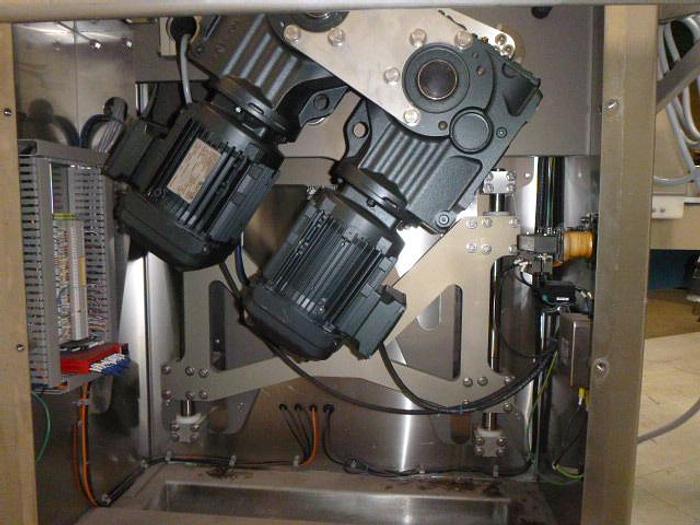

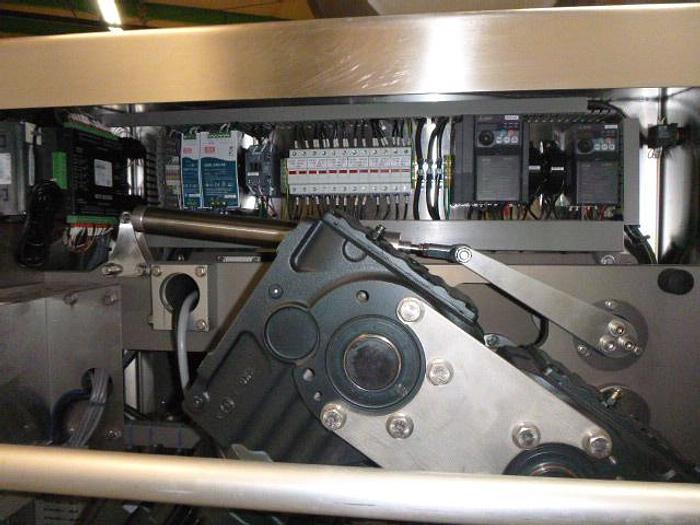

  • The depositor is driven by (2) 1HP gearmotors. Built in 2018. FOB Lake City, PA.


Specifications

ManufacturerUnifiller

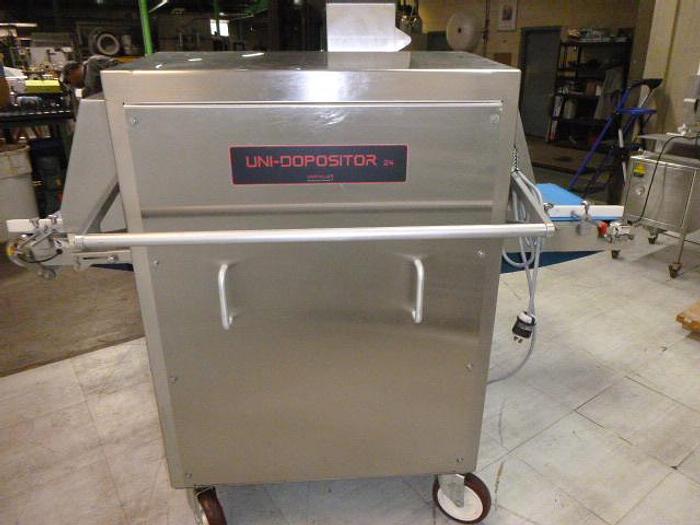

Model24" Servo Uni-Depositor
Year2018
ConditionUsed
Serial NumberUD-082027-002-01
Stock Number20499
