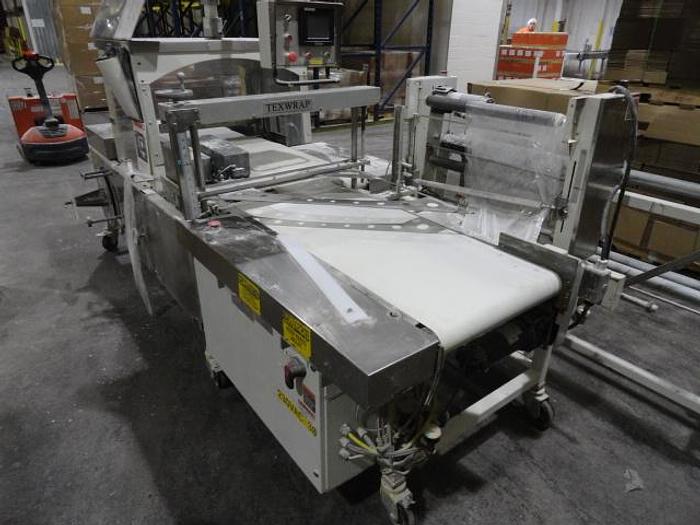

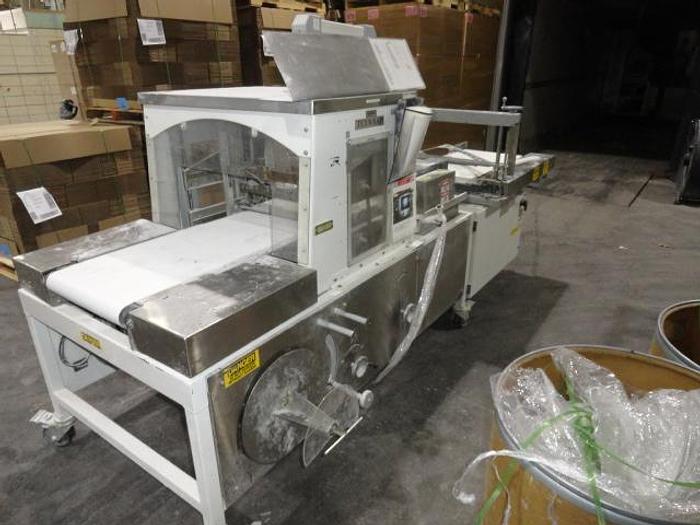

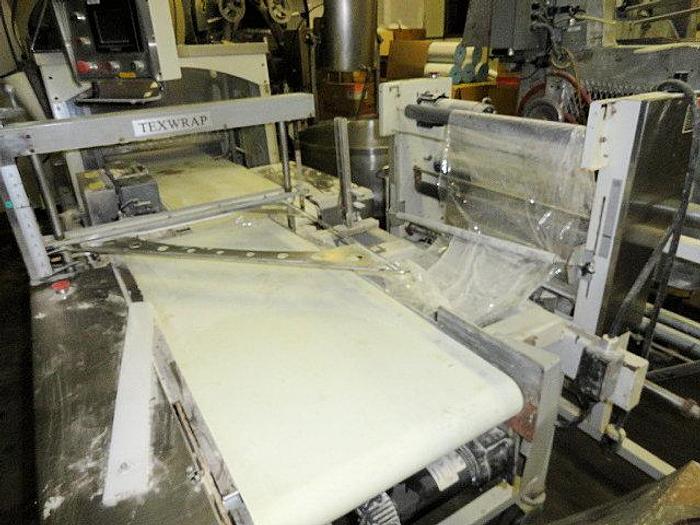

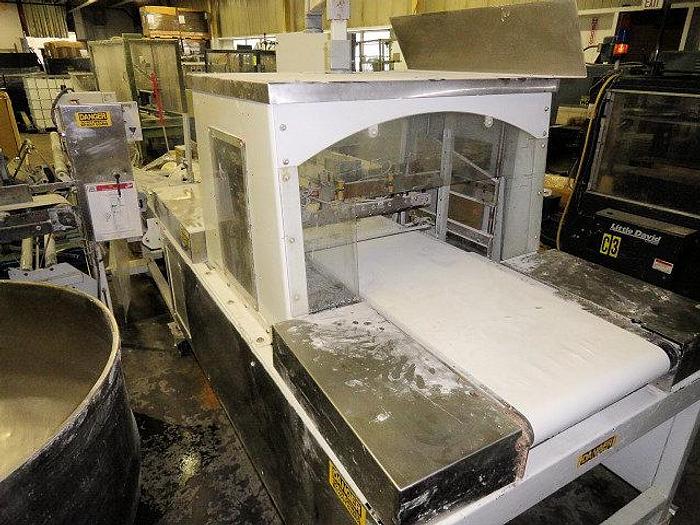

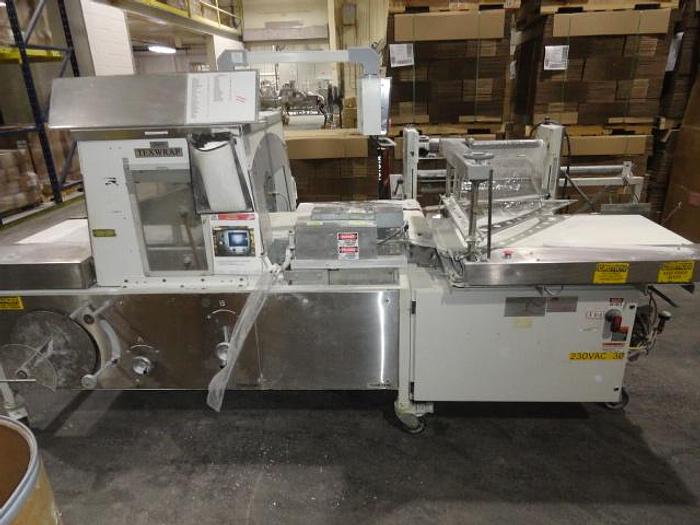

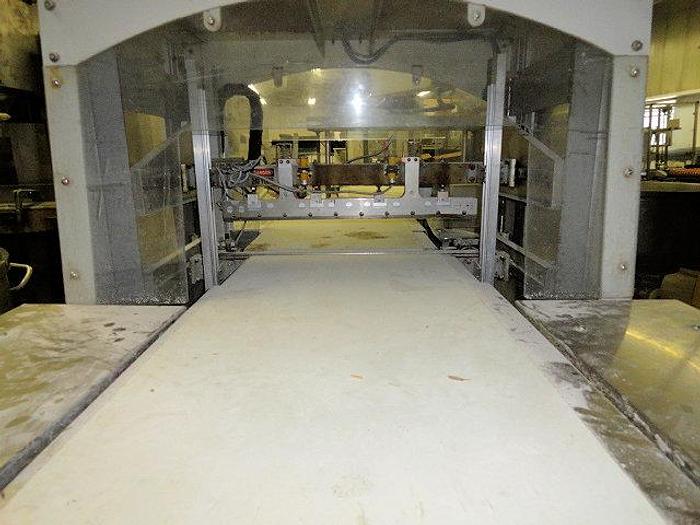

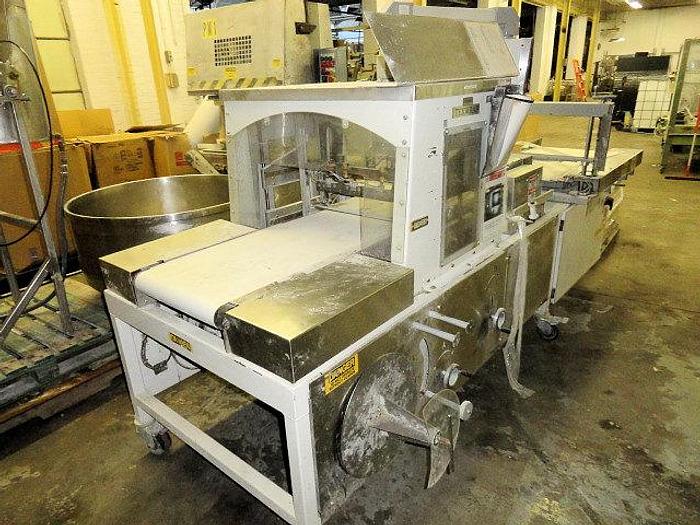

Texwrap Side Sealer Shrink Wrapper; Continuous Motion; Md#1809SS

Texwrap Side Sealer Shrink Wrapper; Continuous Motion; Md#1809SS

Lake City, PA

orCall 814.774.0888

Description

The 1809 Servo-Max side seal wrapper is Texwrap’s offering for applications demanding a very fast servo wrapper versatile enough to accommodate a variety of product sizes. The 1809 uses “Generation 3” servo technology meaning that it was designed from the ground up to integrate servo technology, PLC control, and the mechanical elements of the machine. The result is one incredibly fast, reliable, and flexible wrapper with minimal moving parts, minimal maintenance requirements and maximum performance.

The 1809 series has many built-in features such as programmable cross seal pressure, speed modulation to automatically increase or decrease system speed to follow upstream production, “autospace” to precisely separate randomly-fed products, and a “maximizer” control to automatically bring the entire system to top speed for any given setup. In designing the 1809 series, Texwrap also considered the many different types of upstream feeding systems with which the 1809 might be paired and built in extra capacity making it easy to integrate into almost any application.

  • Large product size capacity
  • 9″ opening, 18″ belt width
  • 24″ length cross seal bar
  • 54″ single wound or 27″ center folded film capacity
  • Dual axis servo drives on cross seal
  • Variable AC vector or servo motors
  • Independent conveyors allow relaxed film at cross seal
  • Centerline design with “Film Saver” infeed standard
  • Built in flexibility, run with lug conveyor; autospace mode accepts random fed product; chokespacing for high speed lugless product spacing
  • Easy change-over “no-tools” hand wheel with touchscreen confirmation

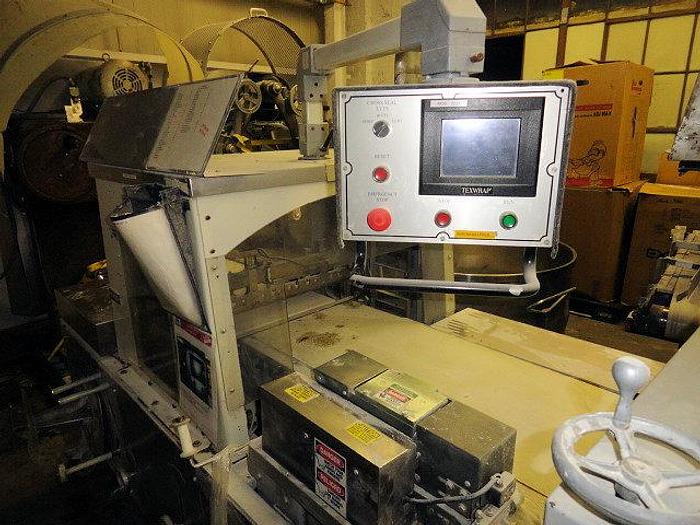

  • Swivel mounted touchscreen with set-up product memory & machine diagnostics
  • Upstream/downstream hand shaking, feeder controls, and quick connect cable system for additional equipment
  • Welded tubular construction with powder coat finish
  • Stainless steel inverting head with air bearing surface
  • Internal scrap take-up with advanced oscillating guide, film break & take up reel alarms
  • “TGM” low maintenance side seal
  • Allen Bradley Control Logix Platform

The unit is 240/208V, single phase. Note last production was 8" pie shells in aluminum pans no heat shrink.

Specifications

ManufacturerTexwrap
Model1809SS
ConditionUsed
Serial NumberESS1048
Stock Number20240
