York Air Cooled Screw Liquid Chiller; Md#YCAS0140

York Air Cooled Screw Liquid Chiller; Md#YCAS0140

Lake City, PA

orCall 814.774.0888

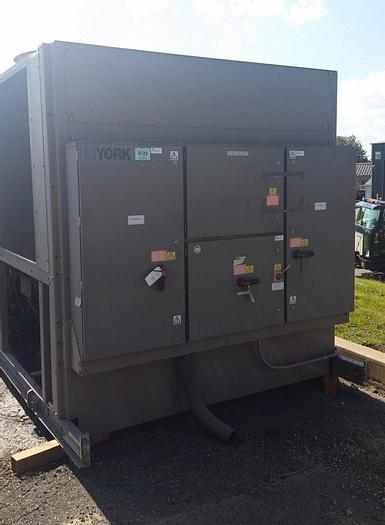

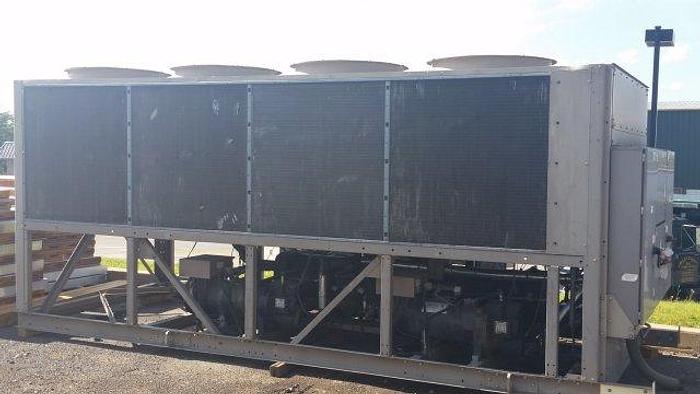

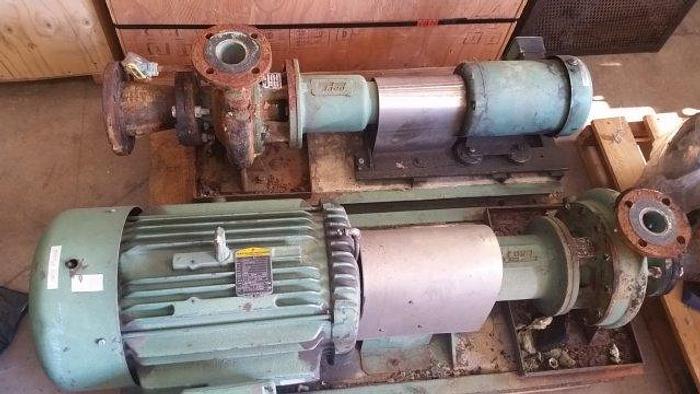

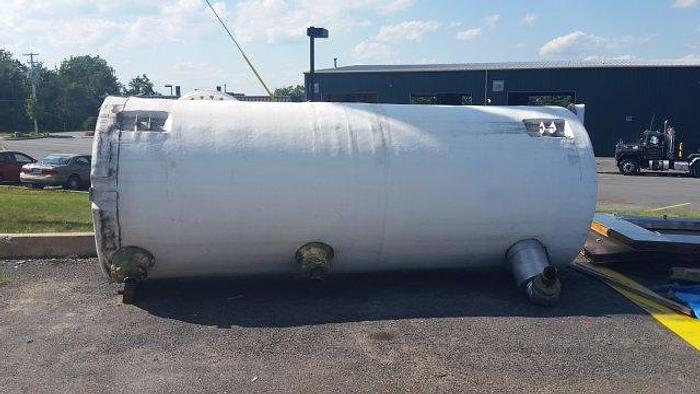

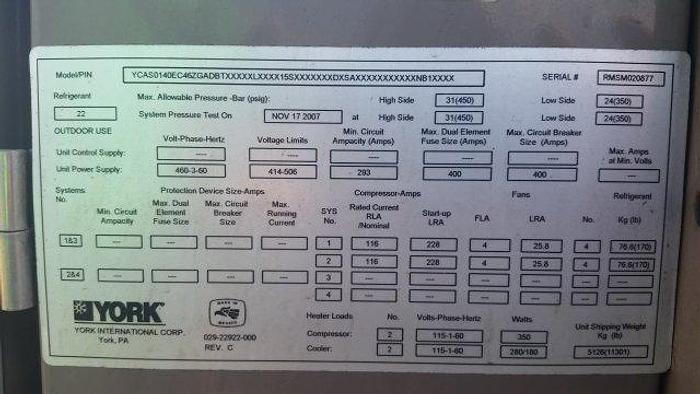

The 140 ton Millennium Air Cooled Screw liquid chiller is completely assembled with all interconnecting refrigerant piping and internal wiring, ready for field installation. The unit is pressure-tested, evacuated, and fully charged with Refrigerant-22, and includes an initial oil charge. After assembly, anoperational test is performed with water flowing through the cooler to check that each refrigeration circuit operates correctly. The unit structure is heavy gauge, galvanized steel, covered with a baked-on enamel. Base rails are of formed double thickness, painted plate steel. Units are designed in accordance with ARI 550, NFPA 70 (National Electrical Code), ASHRAE/ANSI 15 Safety code for mechanical refrigeration, ASME, and U.L. (200, 230, 460 and 575-3- 60 models). Units are rated in accordance with ARI Standard 550. Thge unit is 460V, 3Ph, 60Hz. The compressor & cooler are 115V, single phase. It is complete with tanks and pumps.


Stock Number17904
SubcategoryChillers, Refrigeration
