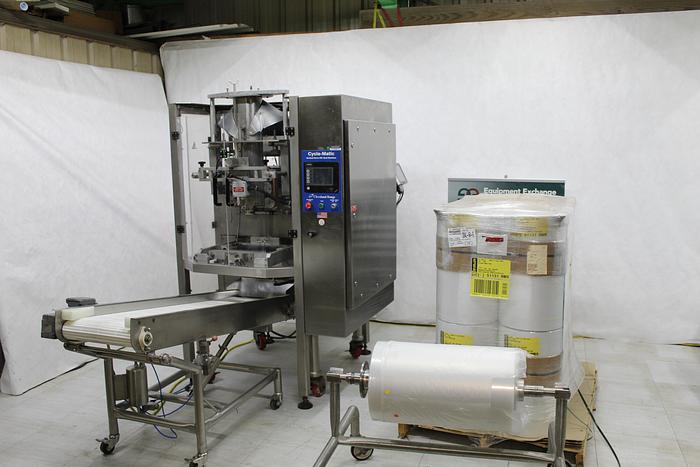

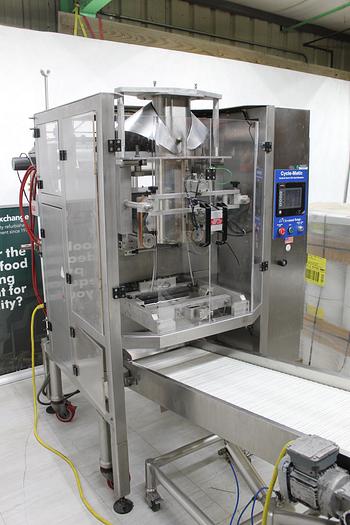

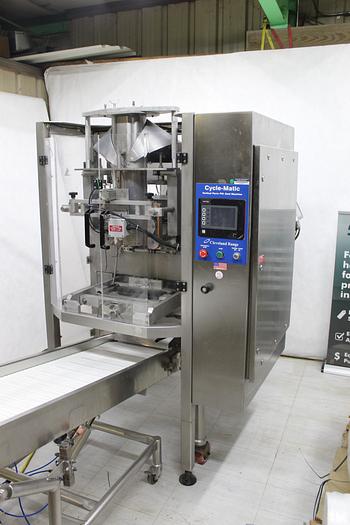

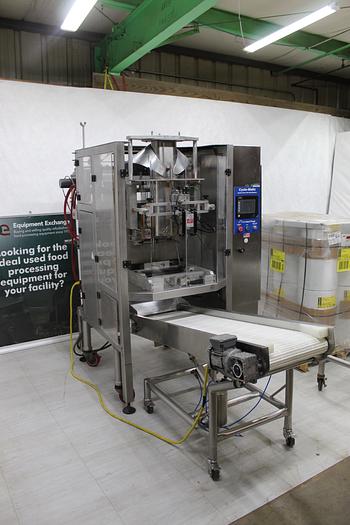

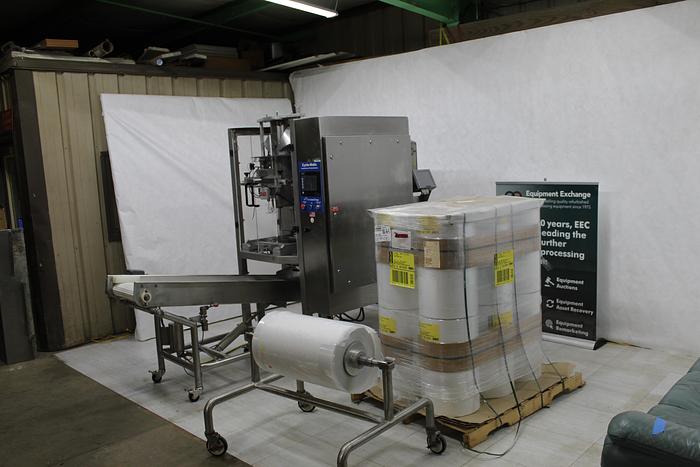

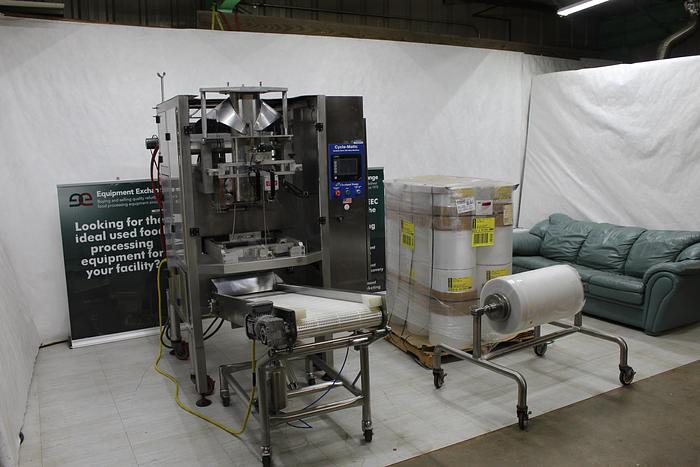

Cleveland Range Vertical Form-Fill and Seal Bagger; Md#Cycle-Matic AFF-1150 & Metering Pump Assembly

Cleveland Range Vertical Form-Fill and Seal Bagger; Md#Cycle-Matic AFF-1150 & Metering Pump Assembly

Lake City, PA

orCall 814.774.0888

Description

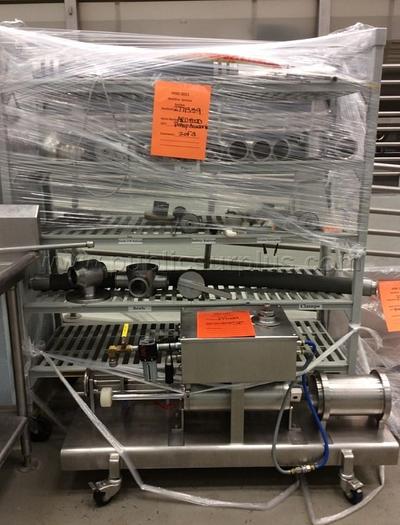

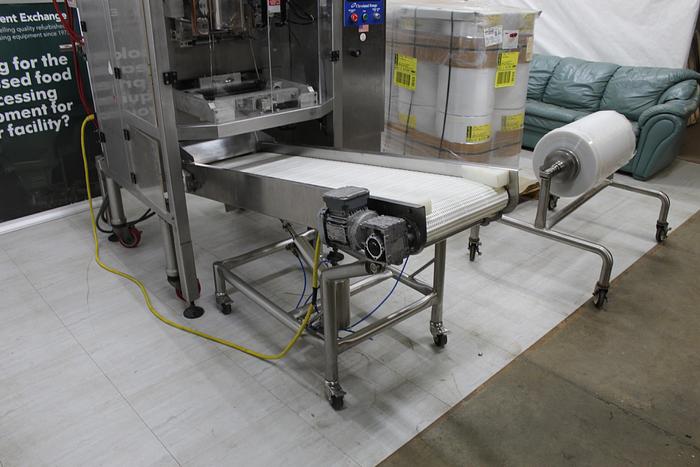

The vertical form, fill & seal (also known as VFFS or vertical bagging) process starts with a cylindrical roll of film, the vertical bagging machine will transfer film from the roll and thru the forming collar (sometimes referred to as tube or plow). Once transferred thru the collar the film will then fold where upon the vertical seal bars will extend and seal the back of the pouch. Once the desired pouch length is transferred it is filled with product. Once filled the horizontal seal bars will then close, seal and cut the pouch providing a finished product that includes a bag with top/bottom horizontal seals and one vertical back seal. This unit was used for hot liquid fill. This unit has Red Lion PLC control and features VideJet model Dataflex+ printer. The forming tube is oval with 7.5"x5.5" dimensions. The packager comes with discharge/takeaway 24" x 6', pneumatic height controls & stainless steel portable film roll rack. The unit is 208V, single phase. FOB Lake City, PA. We also have the JC Pardo pneumatic filling pump that pairs with this packager. Manuals included.

Specifications

ManufacturerCleveland/JC Pardo
ModelAFF-1150
Year2007
ConditionUsed
Serial Number8619
Stock Number20103
