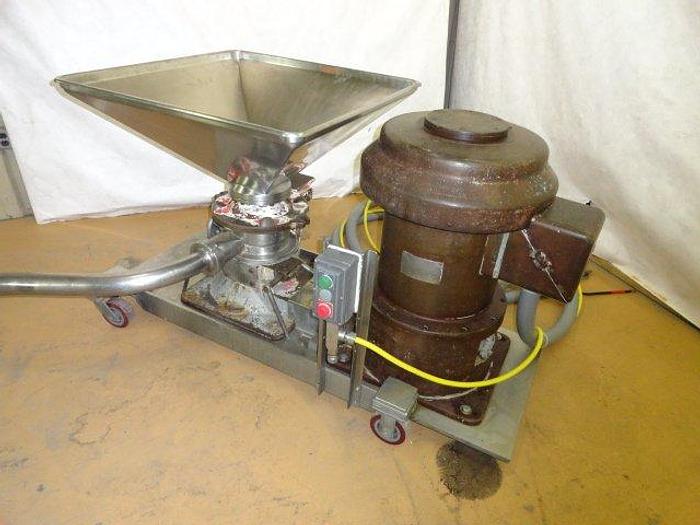

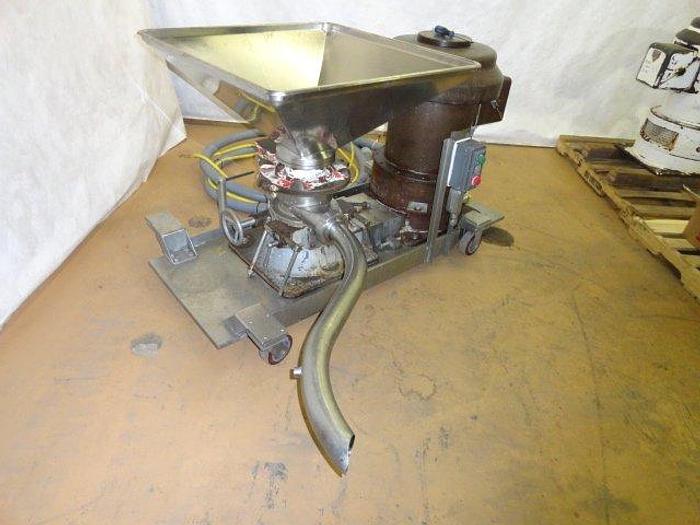

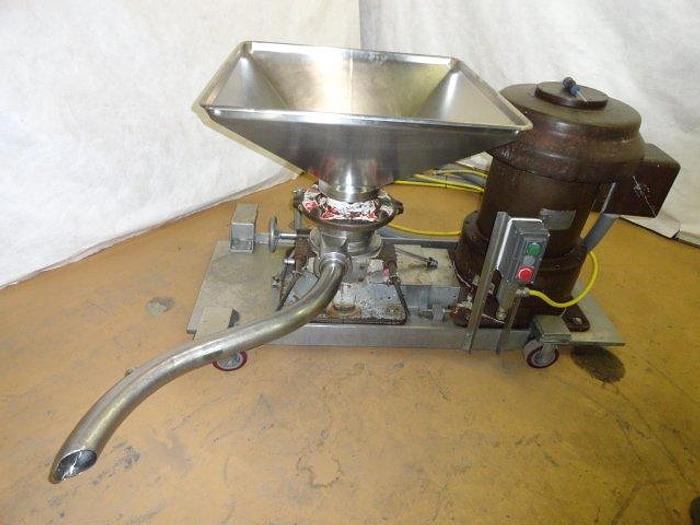

Griffiths Mince Master Emulsifier; 100HP


Griffiths Mince Master Emulsifier; 100HP

Lake City, PA

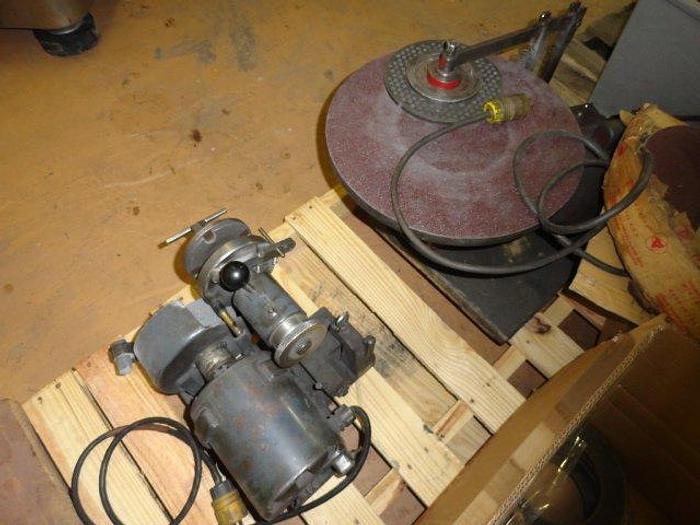

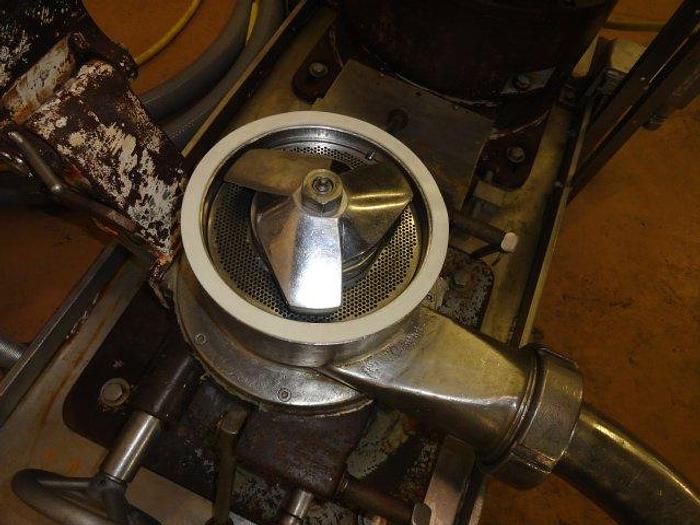

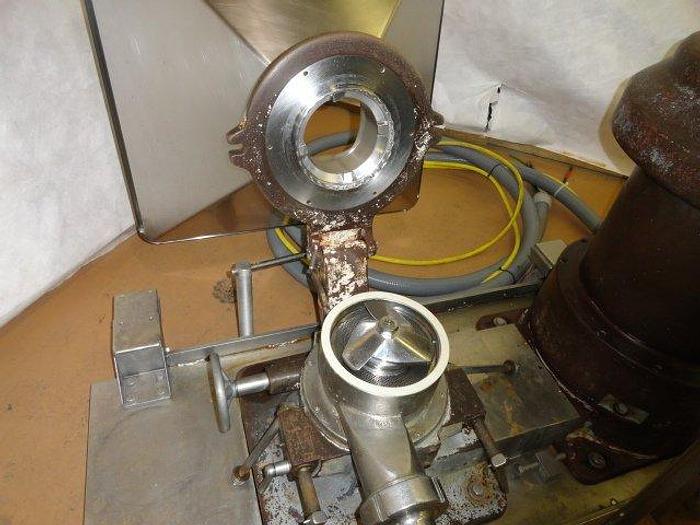

Blended chopped meats and other batch formula ingredients are fed into the hopper of the Mince Master. Instantly the meat is sheared against lugs in the lug rings; finely cut by the bottom edge of knives that whirl at high speeds over the perforated plates, drawn through holes in the plates by vacuum suction, energized by the revolving ejector in the chamber behind the plate. The product is then discharged as a creamy superfine emulsion. The Mincemaster has a 100HP, 3460RPM, 230/460V, 3Ph, 60Hz motor. The unit is all mild steel with stainless steel frame and hopper. It also comes with plate/knife sharpener. FOB Lake City, PA. Eberhardt-Denver 21LV Mincemaster plate polisher Plate lapper for flattening/sharpening Mincemaster cutting plates, 1/2 hp 120V; Karl Schnell 423-1000 Mincemaster blade grinder Fixed-angle swinging-arm Mincemaster emulsifier blade grinder w facing stone 120V Spare motor for MinceMaster 220/440V, 3, 60 hp, 3450 rpm spare motor for Mincemaster This machine has a double plate cut setup. It is currently running a 3.0mm large hole plate and a 1.4mm secondary plate. It includes the following list of spare plates. - 4 - 1.4mm hole plate 3 - 3mm hole plate 1 - 5mm hole plate 1 - 8mm hole plate 1 - 15mm hole plate


Stock Number17895
CategoryFood Preparation
SubcategoryEmulsifiers, Food Preparation
